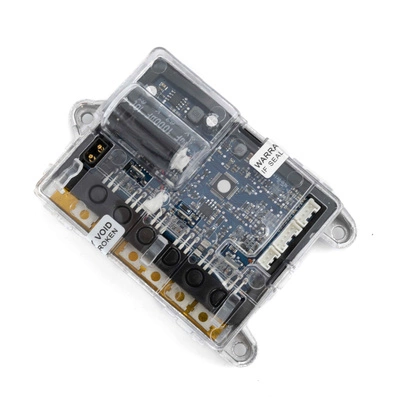

Controller V3 For Xiaomi M365 / Pro / Mi3 / Pro 2
The scooter's controller plays a crucial role in managing the vehicle's performance. It can be compared to a control centre, as it receives signals from various components of the scooter, such as sensors, throttle, brakes, or battery, processes them, and controls other components like the motor or braking system.
The V3 controller is compatible with Xiaomi scooters, including the Xiaomi M365, Xiaomi M365 Pro, Xiaomi M187 Youth, Xiaomi Essential, Xiaomi 1S, Xiaomi Pro 2, Xiaomi Mi3, Xiaomi Electric Scooter 4 Pro and Xiaomi Electric Scooter 3 Lite.
Main Functions of the Xiaomi Controller:
- Speed control: The motherboard controls the impulse sent to the motor based on the signal received from the accelerator throttle. This regulates the motor's revolutions and the scooter's speed.
- Energy management: The controller monitors the battery's charge level and ensures that energy is used efficiently, optimizing the scooter's runtime.
- Overload and overheating protection: The controller constantly checks the motor and battery temperature, protecting the scooter from damage caused by overheating or overloading.
- Fault diagnostics: If the scooter encounters any issues, the motherboard can detect errors and display them on the screen, simplifying diagnosis and troubleshooting.
When Should You Replace the Controller in Your Scooter?
You may need to replace your scooter's controller if it's damaged, for example, due to excessive moisture or water exposure. Some situations that might indicate the need to replace the motherboard are:
- Unexpected scooter shutdown: If the scooter shuts down unexpectedly while you're riding or when trying to start it, this could be due to a faulty controller.
- Unresponsiveness to throttle: If the scooter doesn't respond when you press the accelerator throttle or if the response is delayed, this could suggest a problem with the motherboard.
- Display errors: If unfamiliar errors or messages appear on the display and aren't caused by other scooter components, this could indicate that the controller needs replacement.
How Does the Xiaomi V3 Controller Differ from the V2 Controller?
The V3 controller is an upgraded part that significantly enhances the scooter's performance and allows for additional modifications. It primarily features reinforced transistors, pure copper-thickened pathways and higher-quality fuses.
